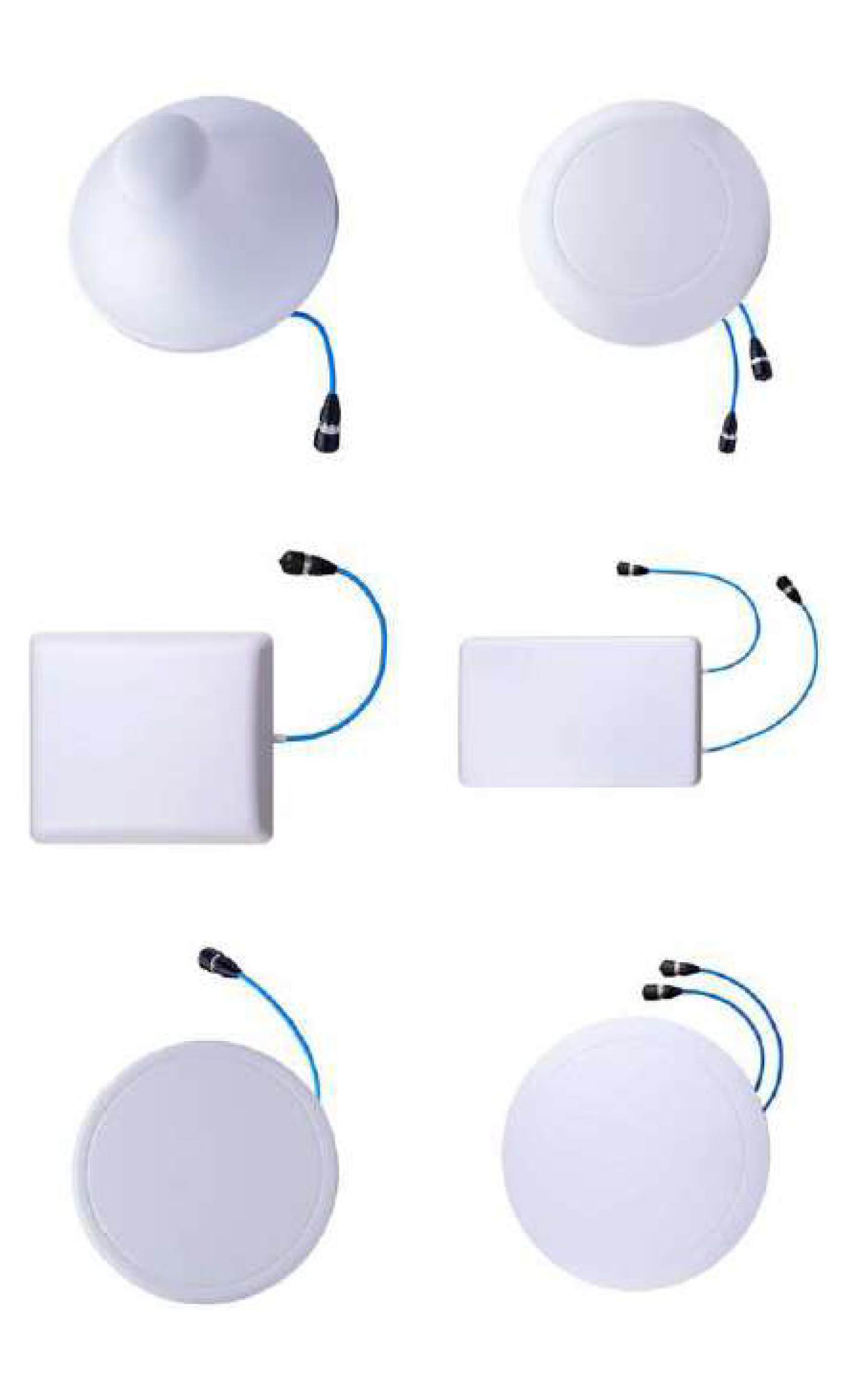

IBS DAS Antennas
5G Low PIM DAS High Performance Antennas
| Parameters | Omni Antenna | Panel Antenna |
|---|---|---|
| Frequency Range | 698–4000 MHz | 698–4000 MHz |
| Impedance | 50 Ohms | 50 Ohms |
| Horizontal Beamwidth | 360° | 55° |
| Vertical Beamwidth | 65° | 35° |
| Gain | 2/5 dBi | 5/8 dBi |
| Polarisation | Horizontal | Vertical |
| VSWR | < 2.0 | < 2.0 |
| Termination – Port | N Female | N Female |
| Max Power Handling | 50 W | 50 W |
| Passive Intermodulation (IM3) | < −150 dBc @ (2×20 W) | < −150 dBc @ (2×20 W) |
| Dimension (W×D×H) | Ø190×73 mm | 180×158×60 mm |
| Weight | 250 g | 400 g |
| Temperature Range | −40°C to +65°C | −40°C to +65°C |
| Pigtail | Yes | Yes |
| Pigtail Length* | 0.2 m | 0.2 m |
| Radiator Material | PCB / Aluminum | PCB / Aluminum |
| Radome Material | ABS | ABS |
| Antenna Color | White / Ivory | White / Ivory |
| Mounting | Ceiling Mountable | Wall / Pole Mountable |
